Pecolift 3.5m working height 2014

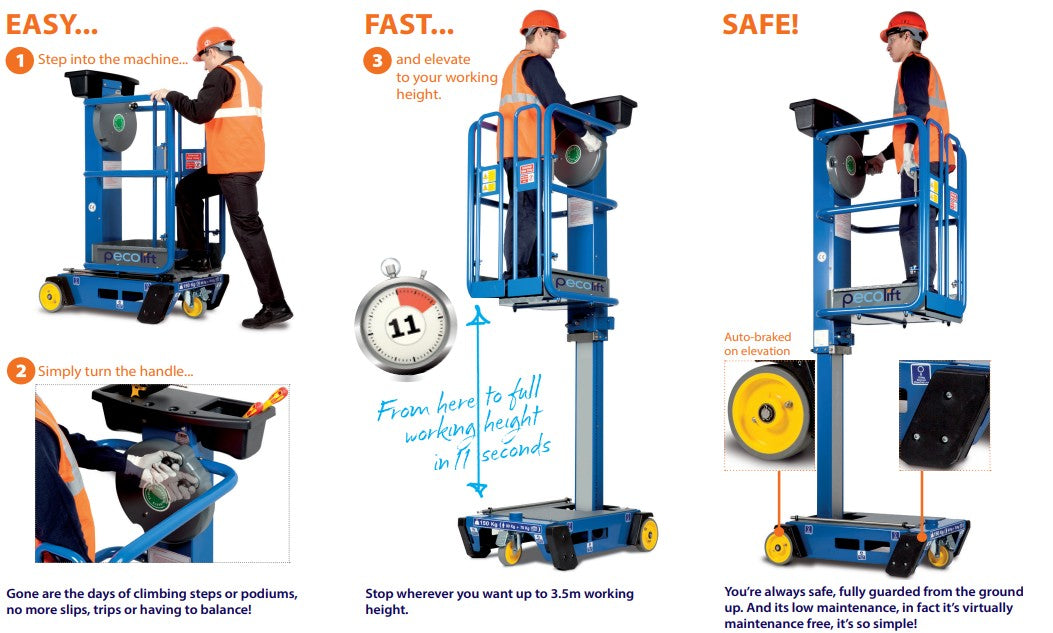

Pecolift is a type of Elevated Work Platform (EWP), though it is specifically a non-powered, low-level access platform. Unlike larger EWPs that use hydraulic or electric power, a Pecolift is manually operated by turning a handle.
Non-powered: The platform is raised by a patented manual mechanism, so it doesn't require batteries or electricity to operate.
Compact design: The Pecolift has a small footprint, which allows it to fit through standard doorways and be maneuvered easily in tight indoor spaces.
Safety features: When the platform is elevated, the wheels are automatically locked for stability. The user is also contained within a protected platform, which is a safer alternative to using ladders.
Use cases: It is ideal for indoor applications such as maintenance, fitting installations, and stock-taking in warehouses, retail stores, and offices.
EWP classifications The International Powered Access Federation (IPAF) classifies low-level access platforms like the Pecolift as a Push Around Vertical (PAV). While the term "EWP" often brings to mind larger, motorized boom or scissor lifts, the broader definition includes any mobile machine designed to elevate workers, tools, and materials.

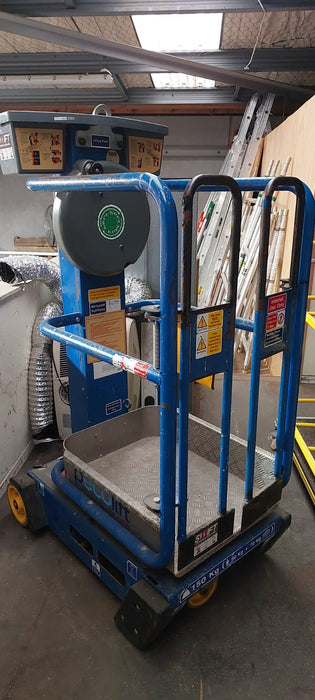

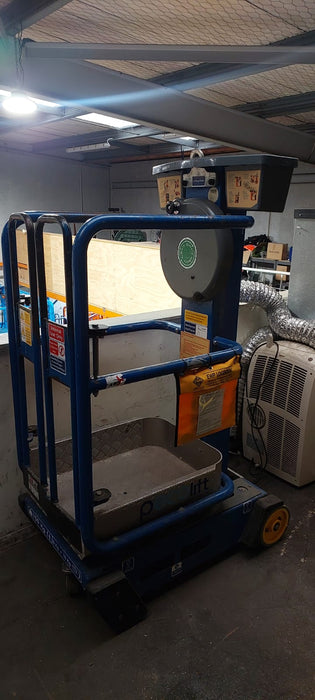

This is an ex-hire machine that has been serviced as an EWP with regular 6month COFs. Unclear if it needs a 10 year inspection under NZ rules.

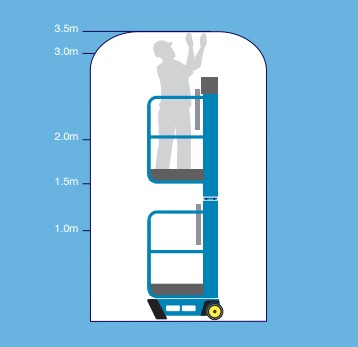

Maximum working height: 3.50 m Maximum platform height: 1.50 m Basket dimensions: 720 mm (L) x 600 mm (W) Working footprint: 985 mm x 700 mm Safe working load: 150 kg (1 person + tools) Maximum manual force: 200 N Maximum gradient for operation: 0 degrees Maximum wind force: Internal use only, 0 (zero) mph Maximum wheel force: 125 kg Maximum castor point load: 125 kg (1.23kN) Sound pressure level: Less than 70Dba
Length: 985 mm Width: 700 mm Height: 1.55 m Weight: 180 kg
'As is' condition, used equipment no warranty is given or implied
